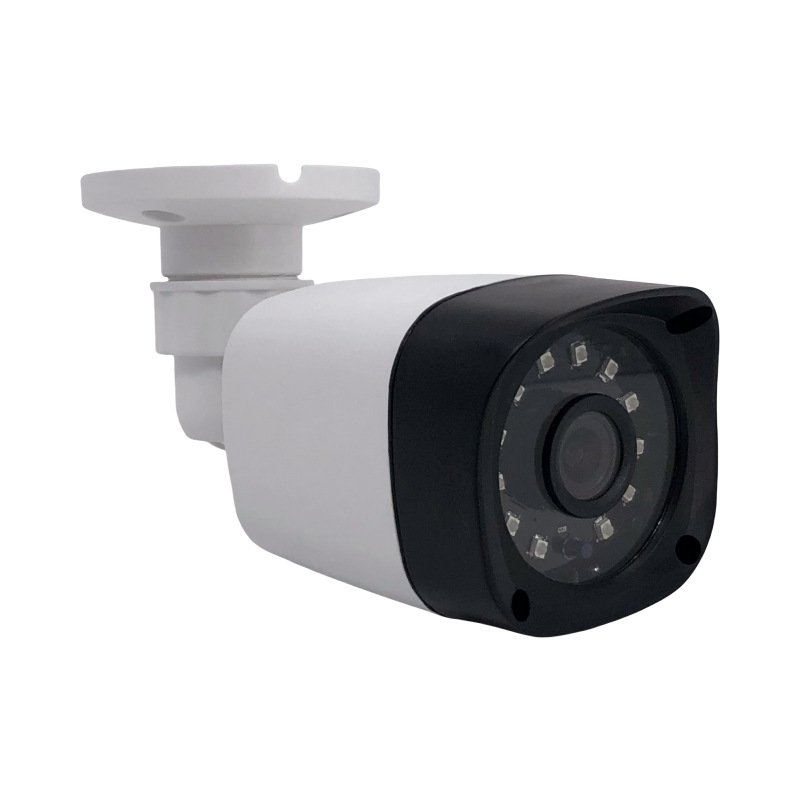

AHB-220-R12 4-in-1 Hybrid Bullet Security Camera: Versatile Weatherproof Surveillance
Upgrade your CCTV network with the AHB-220-R12 4-in-1 Bullet Security Camera. Engineered with a high-performance 1/4.5″ CMOS image sensor, this camera delivers exceptional image quality across multiple resolution choices ranging from 2MP HD up to 8MP (4K Ultra HD). Designed for both indoor and outdoor applications, its IP66-rated housing withstands rain, dust, and extreme weather, making it a reliable security solution for commercial, residential, and industrial sites.
Key Features & Performance Highlights
- 4-IN-1 Universal Compatibility: Supports AHD, HD-TVI, HD-CVI, and CVBS (Analog) video signal outputs through a standard 1 Vp-p Composite (75Ω/BNC) port, making it compatible with 99% of DVRs.
- Advanced Night Vision & Smart IR: Equipped with 12 high-efficiency infrared LEDs and Smart IR technology, achieving clear black-and-white night vision up to 20 meters with an auto IR-CUT filter.
- UTC Coaxial Control & OSD Menu: Effortlessly adjust OSD menu settings, white balance (Auto/Manual), and 2D DNR (Digital Noise Reduction) directly from your DVR interface without extra wiring.
- Low-Light Sensitivity: Superior 0.01 Lux @ (F1.2, AGC ON) performance ensures crisp imaging even in challenging lighting conditions.
- Flexible Lens & TV System: Ships with a default 3.6mm lens for standard wide-angle viewing (2.8mm optional) and supports both PAL and NTSC formats upon request.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | AHB-220-R12 |
| Minimum Order Quantity (MOQ) | 4 Pieces |
| Camera Style / Type | Bullet Security Camera |
| Image Sensor | 1/4.5″ CMOS Image Sensor |
| Signal Modes (4-in-1) | AHD / CVI / TVI / CVBS |
| Resolution Options | 2MP / 4MP / 5MP / 8MP (4K) |
| Min. Illumination | 0.01 Lux@(F1.2, AGC ON), 0.01 Lux with IR |
| Lens Options | 3.6mm (Default) / 2.8mm (Optional) |
| IR LEDs & Distance | 12 PCS IR LEDs, Max 20m IR Distance |
| Day / Night Mode | Auto IR-CUT Filter, Color / B&W, Smart IR |
| Image Enhancements | Auto/Manual White Balance, 2D DNR |
| Control & Menu | UTC Coaxial Control, OSD Menu Support |
| Video Interface | 1 Vp-p Composite Output (75Ω / BNC) |
| TV System | PAL / NTSC (Optional) |
| Weatherproof Rating | IP66 Waterproof (Indoor & Outdoor Universal) |
| Power Supply | DC 12V 2A (Power adapter sold separately) |
Indoor & Outdoor Deployment Scenarios
Thanks to its robust IP66 waterproof rating and versatile bullet form factor, the AHB-220-R12 camera is built to excel in various operational environments:
- Outdoor Perimeter Security: Monitor building exteriors, driveways, parking lots, and courtyards under rain, snow, or direct sunlight.
- Commercial & Industrial Sites: Protect warehouses, loading docks, corridors, and store fronts with high-definition coaxial video transmission.
- Residential Protection: Secure homes and garages with clear day-and-night surveillance.
Frequently Asked Questions (FAQ)
Q1: What is the MOQ for model AHB-220-R12?
A: The Minimum Order Quantity (MOQ) for this bullet camera model is 4 pieces, making it convenient for both small project installations and bulk wholesale testing.
Q2: How do I switch between AHD, TVI, CVI, and CVBS signal modes?
A: You can easily switch signal modes using the UTC Coaxial Control feature directly through your DVR’s OSD menu interface without needing a physical switch cable on the camera.
Q3: Is model AHB-220-R12 suitable for outdoor installation in heavy rain?
A: Yes! The camera features an IP66 weatherproof rating, protecting the internal components from heavy rain, water jets, and dust intrusion for year-round outdoor use.
Q4: Does the camera come with a power adapter included?
A: No. The standard package does not include a power adapter. The camera requires a standard DC 12V 2A power supply, which can be ordered separately from our store.
